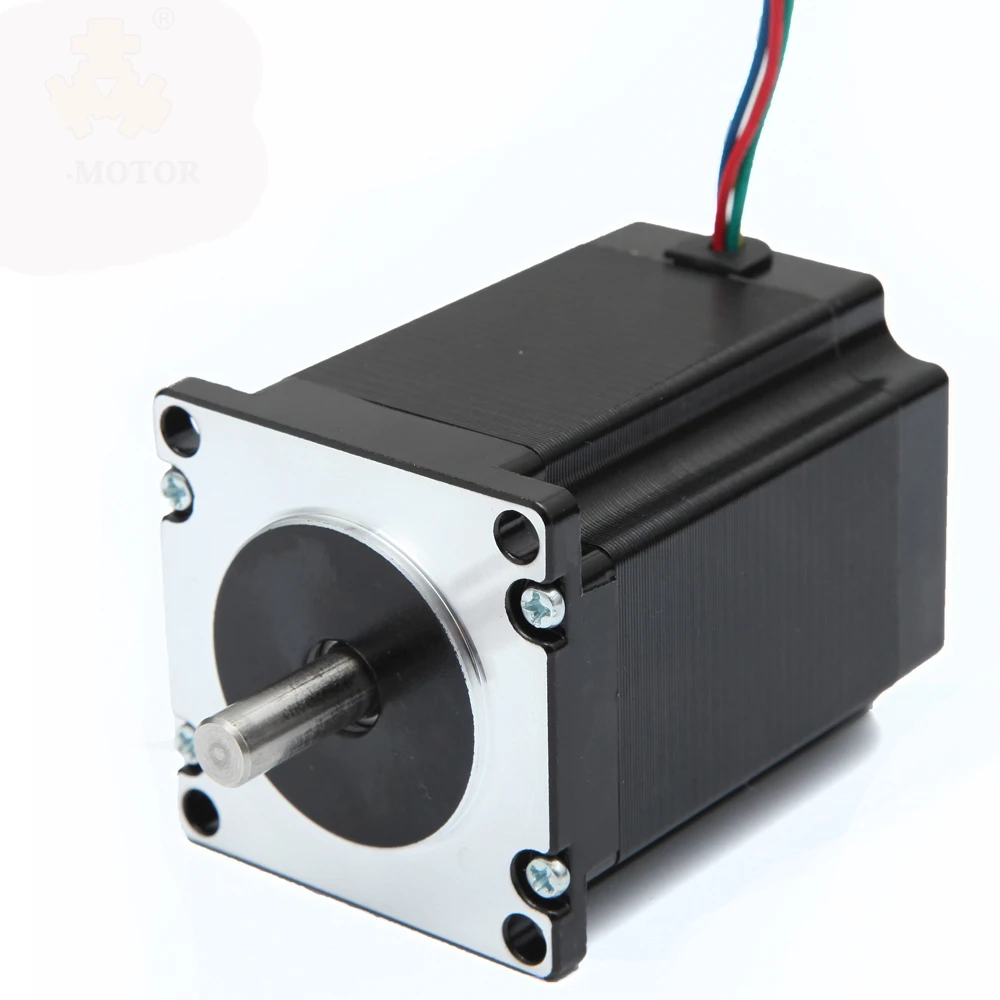

CNC Kit Nema 23 Stepper Motor 1.26Nm 56mm 2.8A 57HS Stepper 176oz.in
CNC nema 23 cheap stepper motor
Specifications:
Step Accuracy ------------------------------ ±5% Resistance Accuracy ----------------------- ±10% Inductance Accuracy ---------------------- ±20% Temperature Rise -------------------------- 80°C MAX. Ambient Temperature Range ------------- -20°C~ +50°C Storage Temperature Range ------------- -30°C~ +60°C Insulation Resistance ---------------------- 100M Ω MIN. 500V DC Dielectric Strength ------------------------- 500V AC 1min Radial Play --------------------------------- 0.02mm MAX. (450g Load) End Play ------------------------------------ 0.08mm MAX. (450g Load) Max. radial force --------------------------- 75N Max. axial force ---------------------------- 15N nema 23 series stepper motor
| Model No | Step Angle (°) | Rated Voltage (V) | Rated Current (A) | Phase Resistance (Ω) | Phase Inductance (mH) | Holding Torque (Kg.cm) | Motor Length (mm) | Leads No. | Motor Weight (Kg) |
| 57HS41-2004 | 1.8 | 2 | 2 | 1 | 2.2 | 5 | 41 | 4 | 0.45 |
| 57HS51-1504 | 1.8 | 2.4 | 1.5 | 1.6 | 3.8 | 8.2 | 51 | 4 | 0.65 |
| 57HS51-2004 | 1.8 | 2.4 | 2 | 1.2 | 3 | 9 | 51 | 4 | 0.65 |
| 57HS56-1504 | 1.8 | 5.7 | 1.5 | 3.8 | 12 | 13.5 | 56 | 4 | 0.7 |
| 57HS56-2804 | 1.8 | 2.8 | 2.8 | 1 | 3 | 12.6 | 56 | 4 | 0.7 |
| 57HS56-3004 | 1.8 | 2.85 | 3 | 0.95 | 2.8 | 12 | 56 | 4 | 0.7 |
| 57HS76-2804 | 1.8 | 3 | 2.8 | 1.1 | 3.6 | 19 | 76 | 4 | 1 |
| 57HS76-2004 | 1.8 | 8.6 | 2 | 4.3 | 16.2 | 24 | 76 | 4 | 1 |
| 57HS76-3004 | 1.8 | 2.7 | 3 | 0.9 | 3.5 | 20 | 76 | 4 | 1 |
| 57HS76-4004 | 1.8 | 2.4 | 4 | 0.6 | 2.2 | 20 | 76 | 4 | 1 |
| 57HS82-3004 | 1.8 | 4.2 | 3 | 1.4 | 5 | 22 | 82 | 4 | 1.2 |
| 57HS82-4004 | 1.8 | 3 | 4 | 0.75 | 3.5 | 20 | 82 | 4 | 1.2 |
| 57HS100-3004 | 1.8 | 3 | 3 | 1 | 4.5 | 25 | 100 | 4 | 1.4 |
| 57HS112-3004 | 1.8 | 3.9 | 3 | 1.3 | 6.5 | 30 | 112 | 4 | 1.7 |
| 57HS112-4004 | 1.8 | 3.6 | 4 | 0.9 | 4 | 30 | 112 | 4 | 1.7
|
Applications:
Stepper motor are widely applied in engraving machine, textile machine, 3D printer, medical instruments, stage light equipment, robot, CNC, music fountain, and other industrial automatic equipment.
Our main products includes stepper motors, closed loop system, gear reducer stepper motor, linear stepper motor, brake stepper motor, stepper drivers, controller board, spindles, power supplys, and other accessories.
Our main products includes stepper motors, closed loop system, gear reducer stepper motor, linear stepper motor, brake stepper motor, stepper drivers, controller board, spindles, power supplys, and other accessories.
Our products are widely used in 3d printers, CNC routers, Engraving Machines, stage lighting control, security surveillance, video equipment, laserworkstation, carving machine, office automation, smart toy, digital controlled machinery and medical instrument and other automatic equipment.
Our Services
1. Sample order lead time is in 5 days. Mass quantity order lead time is 7-10 days.
2. We can accept payment via paypal, Western Union, Money Gram, T/T, L/C
3. We can provide you professional technical support. And our products quality gurantee is 18 months.
4. We accept products customize.
Company Information
Our main products include from size NEMA 8 to NEMA 42 series hybrid stepper motor, and variable sizes linear stepper motor, stepper motor with gear box, stepper motor with brake. And by now we have new products about closed loop systems for nema 23, nema 24 and nema 34 sizes. In addition, we can produce suitable drivers for all the motors. And we always research and develop new products.
